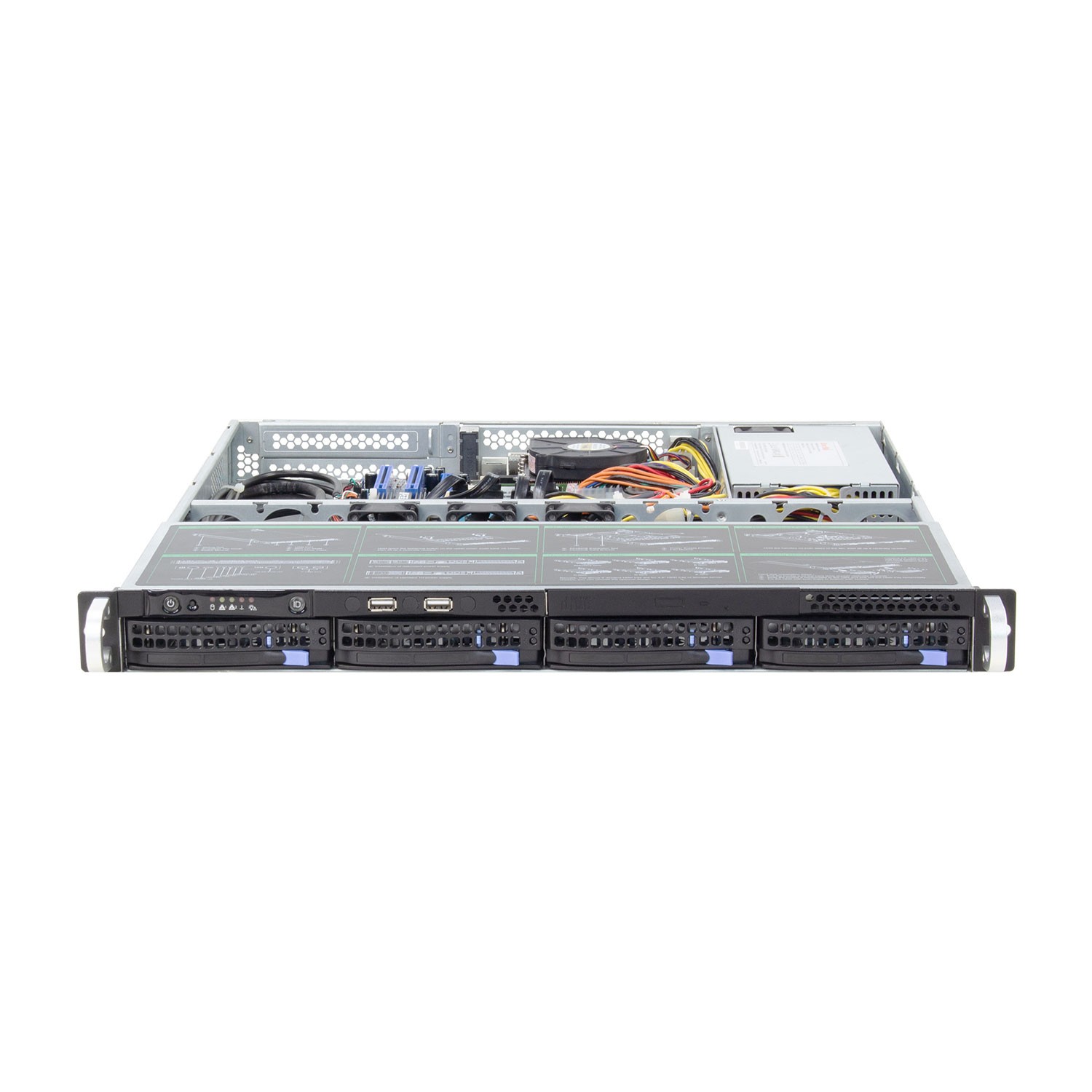

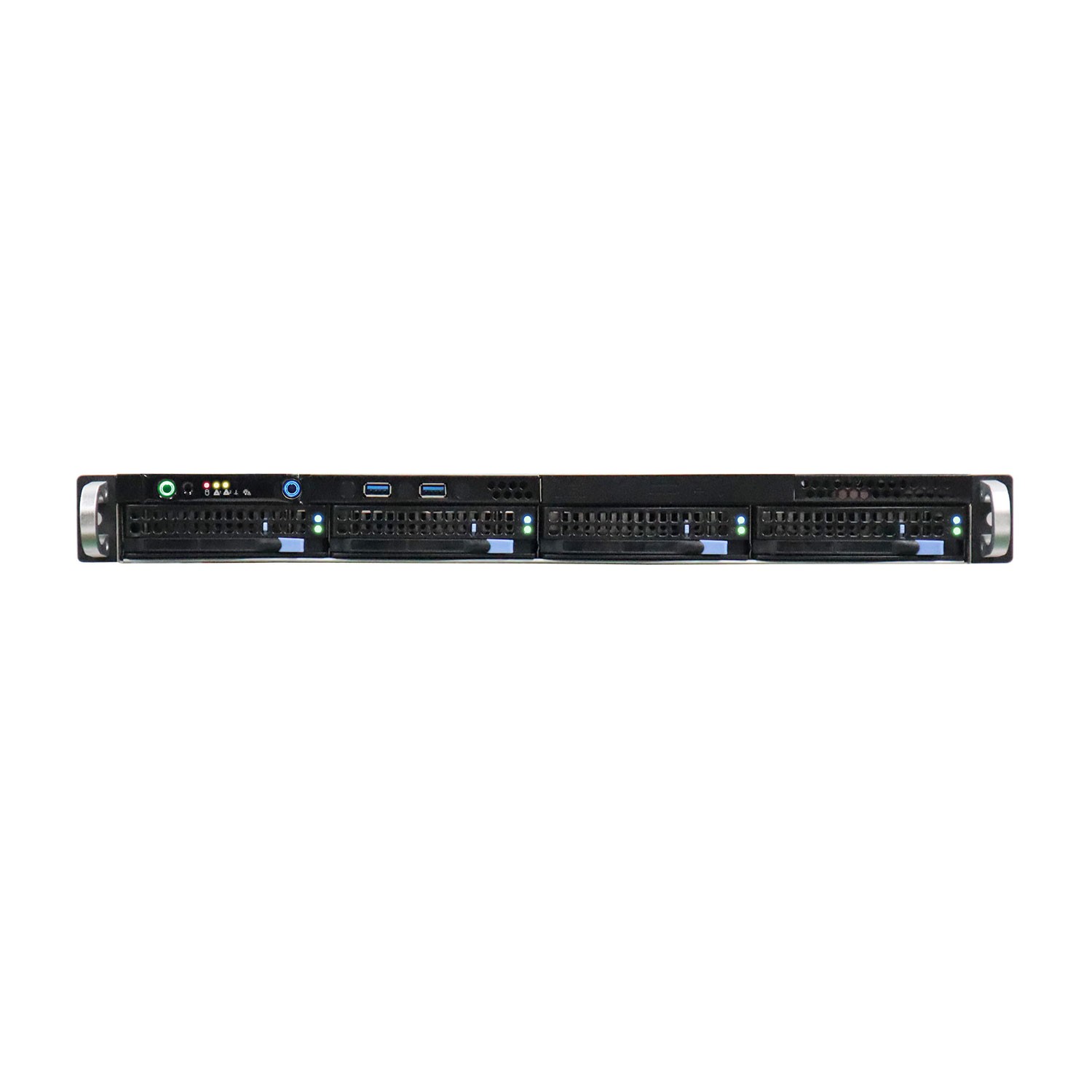

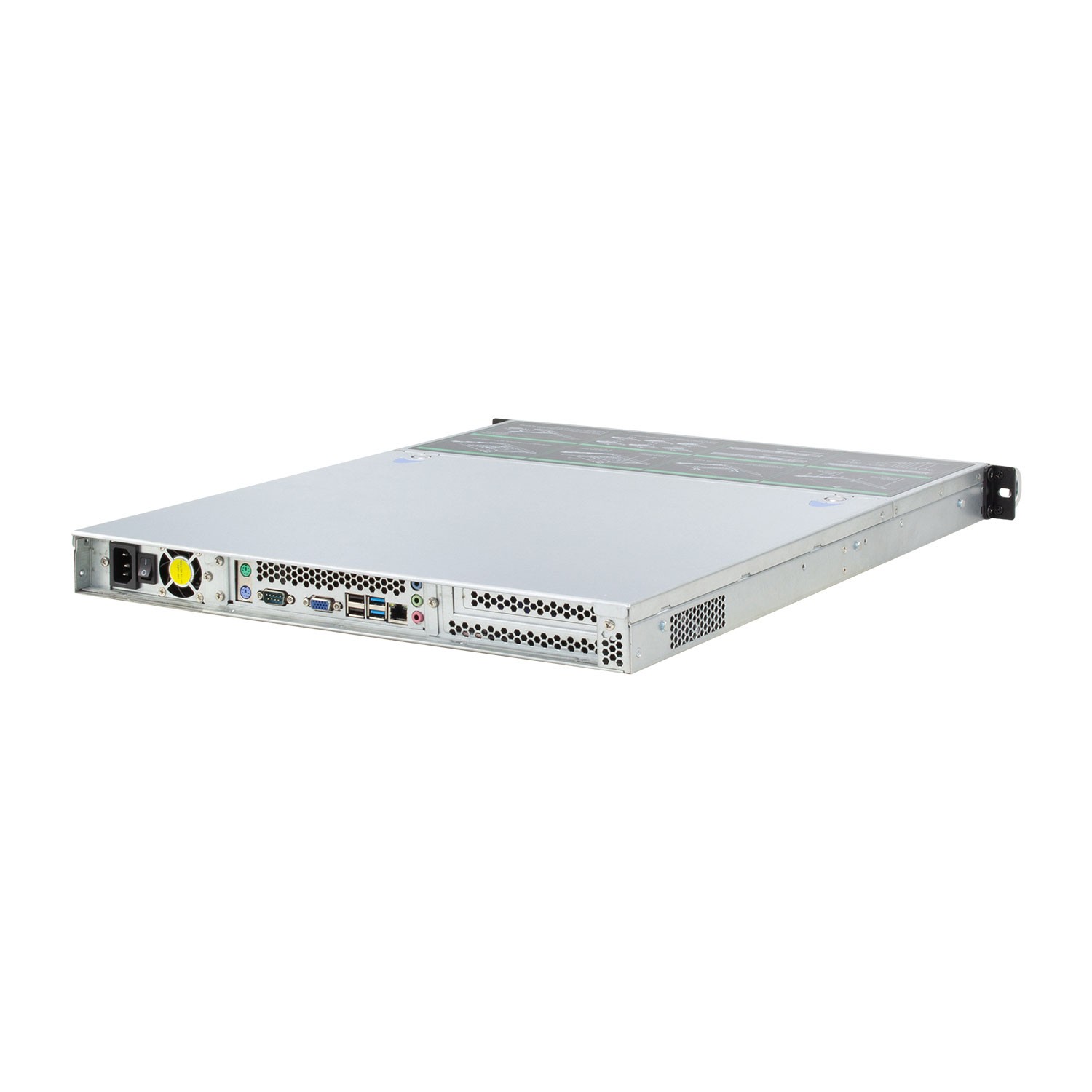

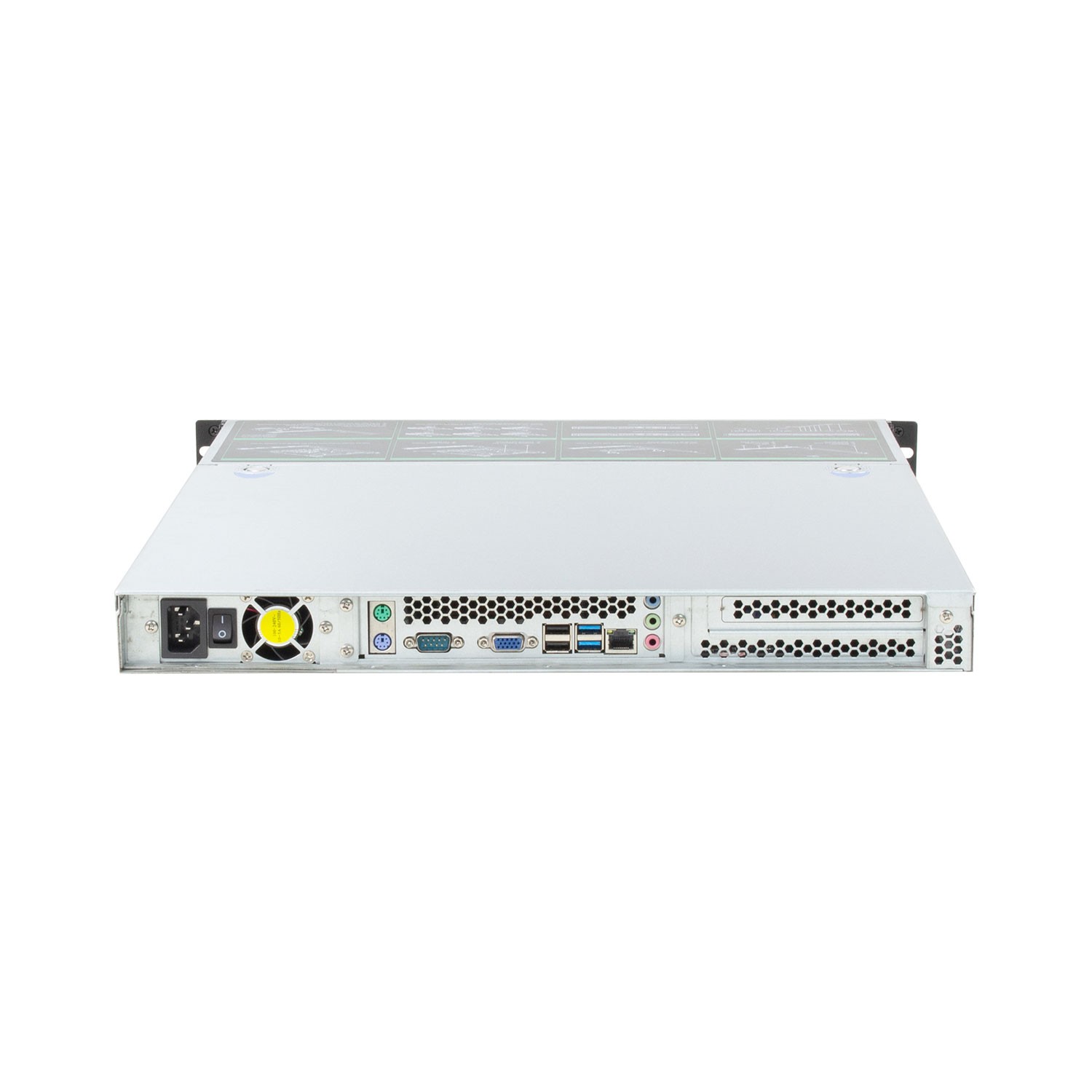

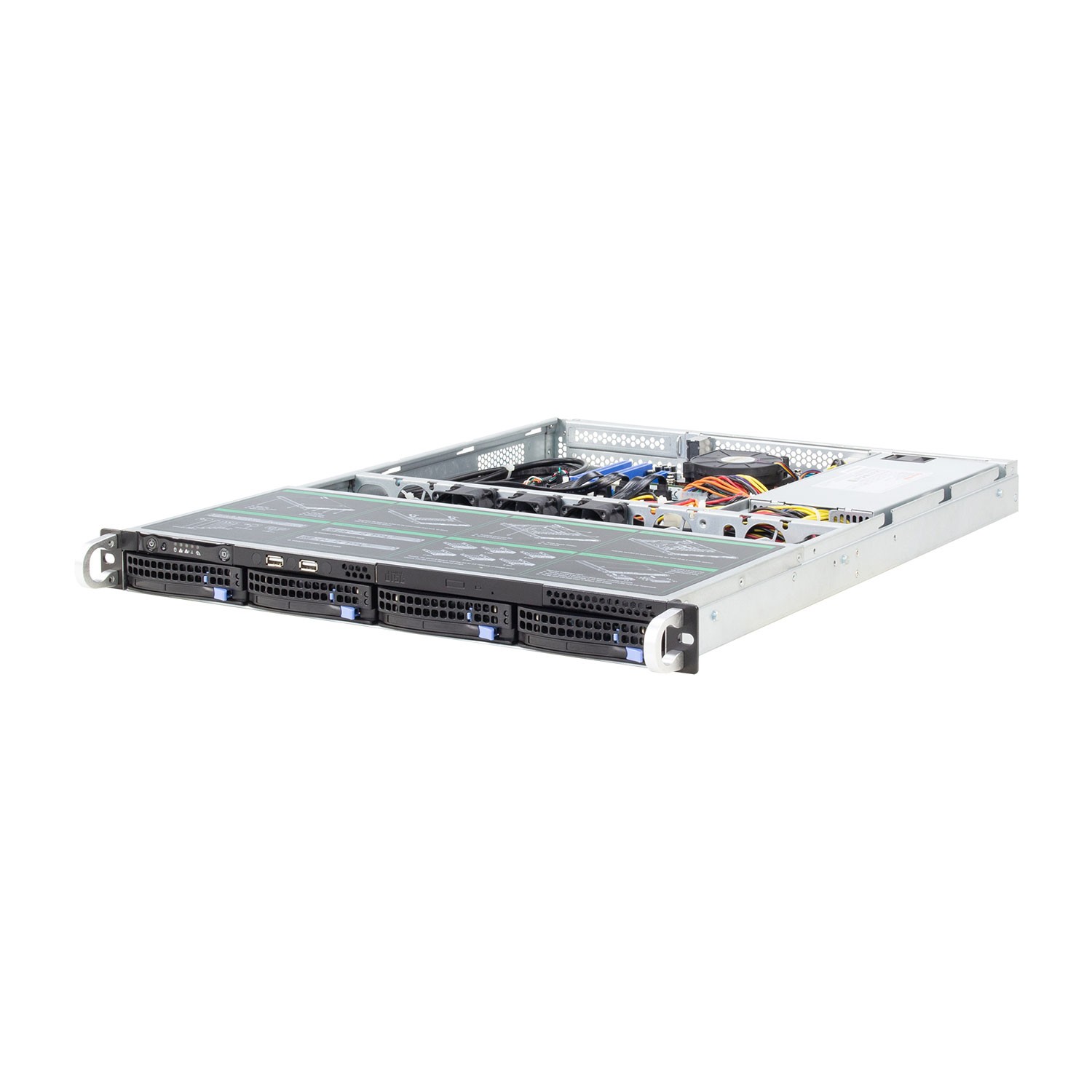

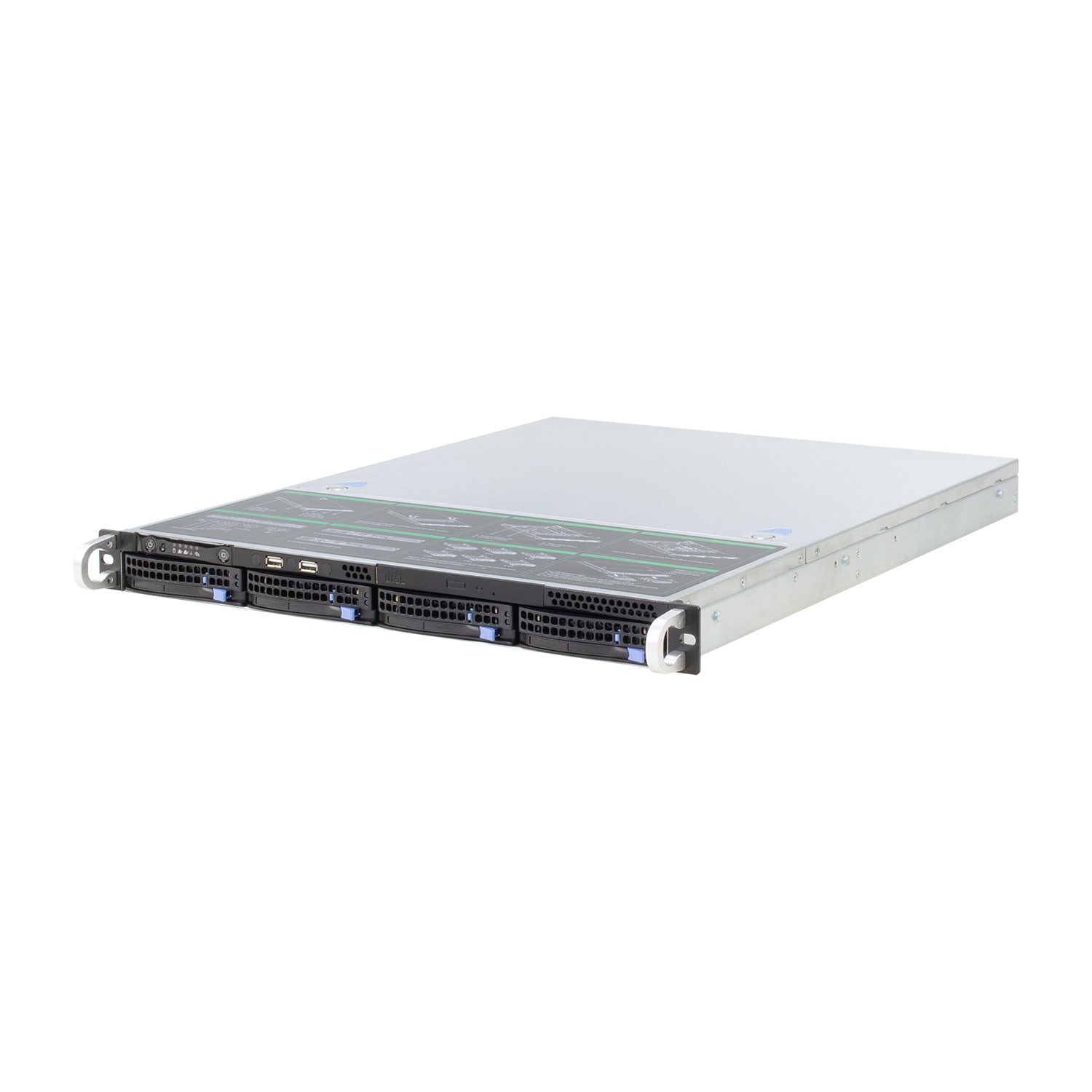

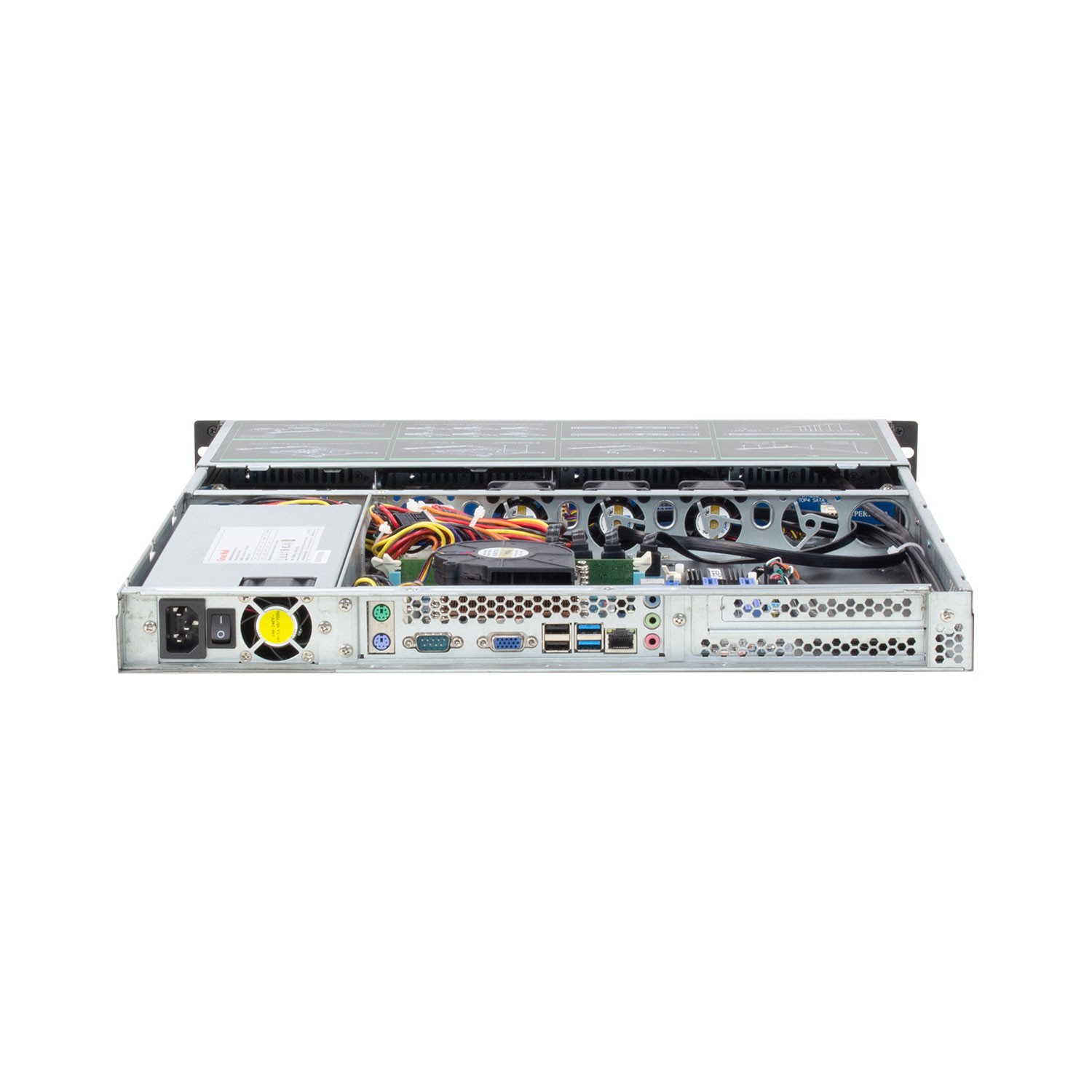

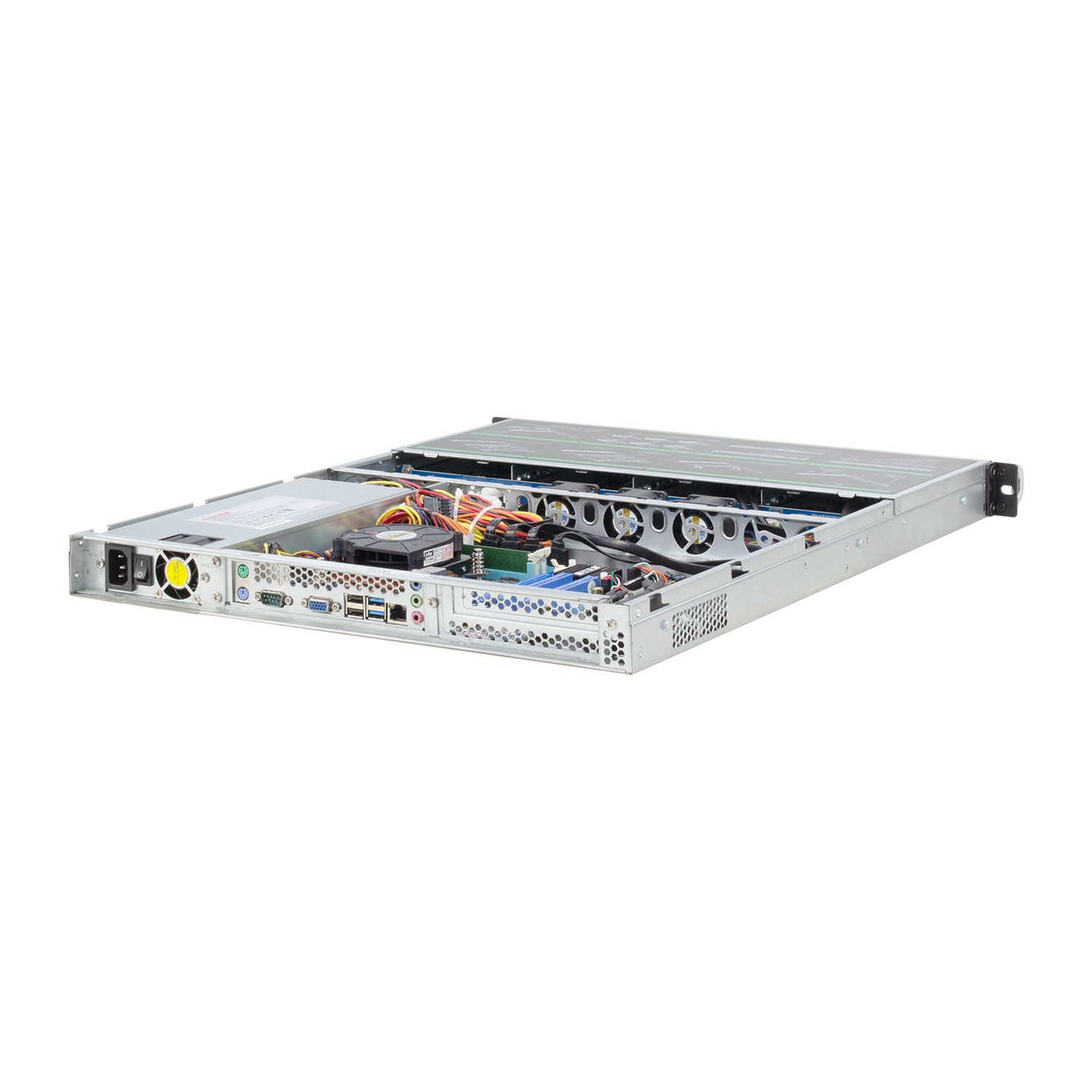

S165-04 Hot swappable server chassis
Supports 4 front 3.5 "hot swappable hard drive slots,
Simultaneously compatible with 2.5 "SSD,
Supports standard motherboards with sizes of 13.68 "13" (EE-ATX) and below,
Supports standard 1U power supply,
Equipped with 4 4028B ball fans as standard, it has good heat dissipation effect,
Widely used in cloud storage, big data, private clouds
In areas such as enterprise level storage and security monitoring.
| Components | Specification |
| Dimensions(mm) | 437.5mm x 650mm x 44mm, standard 19" rackmount chassis. |
| Materials | 1.0mm SGCC Zinc-Coated Steel. |

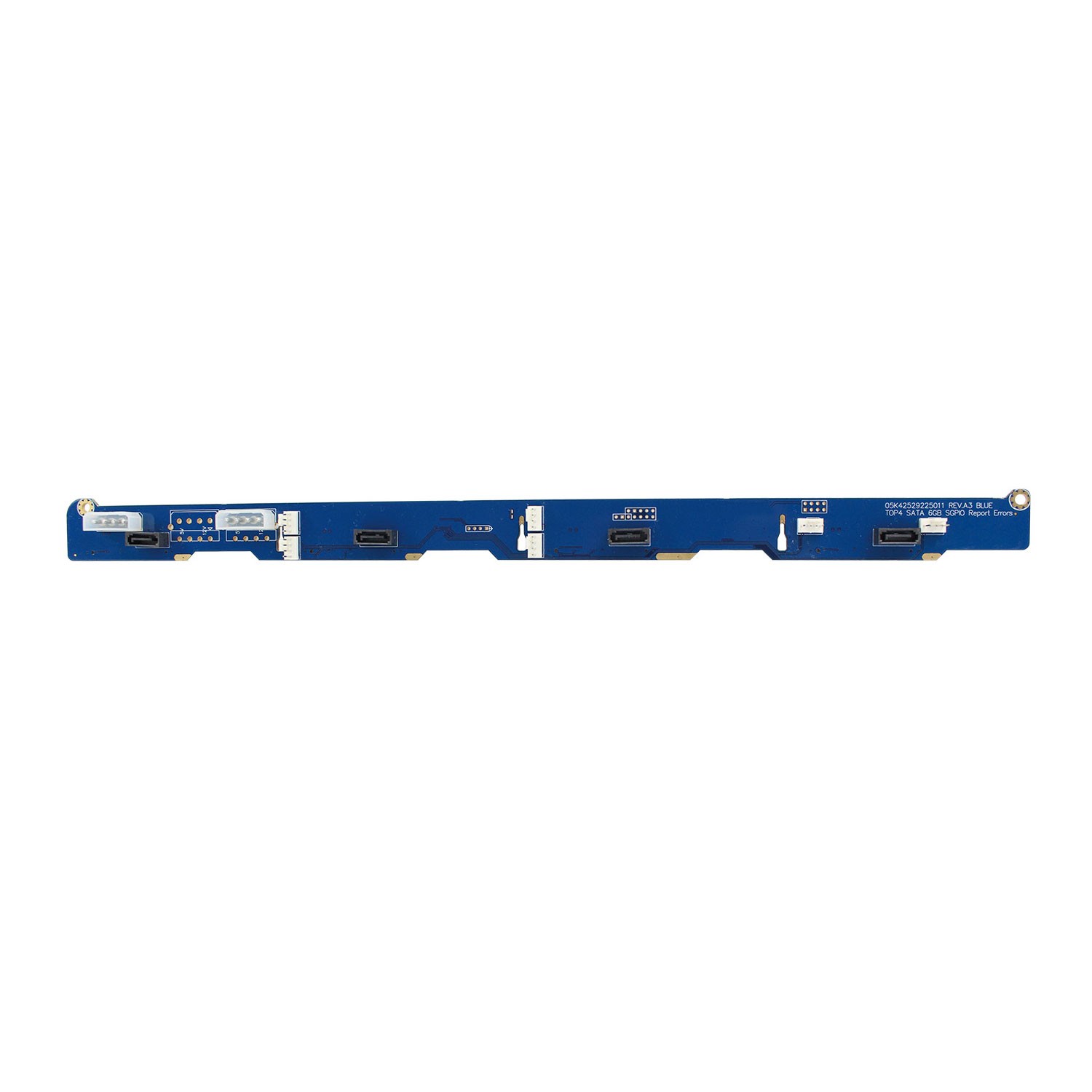

| Backplane | 6Gb/s SATA backplane, / 6Gb/s MINI SAS backplane,with temperature control chipset. / 12Gb/s MINI SAS backplane, with temperature control chipset. |
| Drivers bay | 4 x 3.5" hot-swap SATA (II or III) / SAS (II or III) 6Gb/s drive bays. |
| CD-ROM bays | 1 slim CD-ROM bay(Compatible with 2.5" HDD/SSD). |
| Cooling Fan | Optional 6pcs 40mm fan position, standard quotation with 4pcs 4028 AVC ball bearing fans. |
| PSU form factor | 1U standard power suppy, length180-250mm. |
| M/B form factor | Support MAX 12" x 13" motherboard. |
| Epansion space | 1 full-height PCI/PCIE expansion slots. |
| Connector | Two front accessible USB2.0 ports(Optional USB3.0). |
| System Control | Power LED*1，Reset*1，Power SW*1，HDD LED*1，NIC LED*2，UID LED*1，UID SW*1，OH/FAN Fail LED*1，Power Fail LED*1 |
| Applicarion | Srorage,security monitoring,cloud computing,LOTetc. |
| Product Features: | |
1.Conformed with EMC design standard to prevent from electromagnetic interference. | |
| 2.Support motherboard size up to 12" x 13",and 4*3.5"HDD bays,1 slim CD-ROM ,1U standard power suppy, length180-250mm. | |
| 3.The chassis has good ventilation system 4pcs 4028 AVC ball bearing fans to make sure the system work steadily. | |
