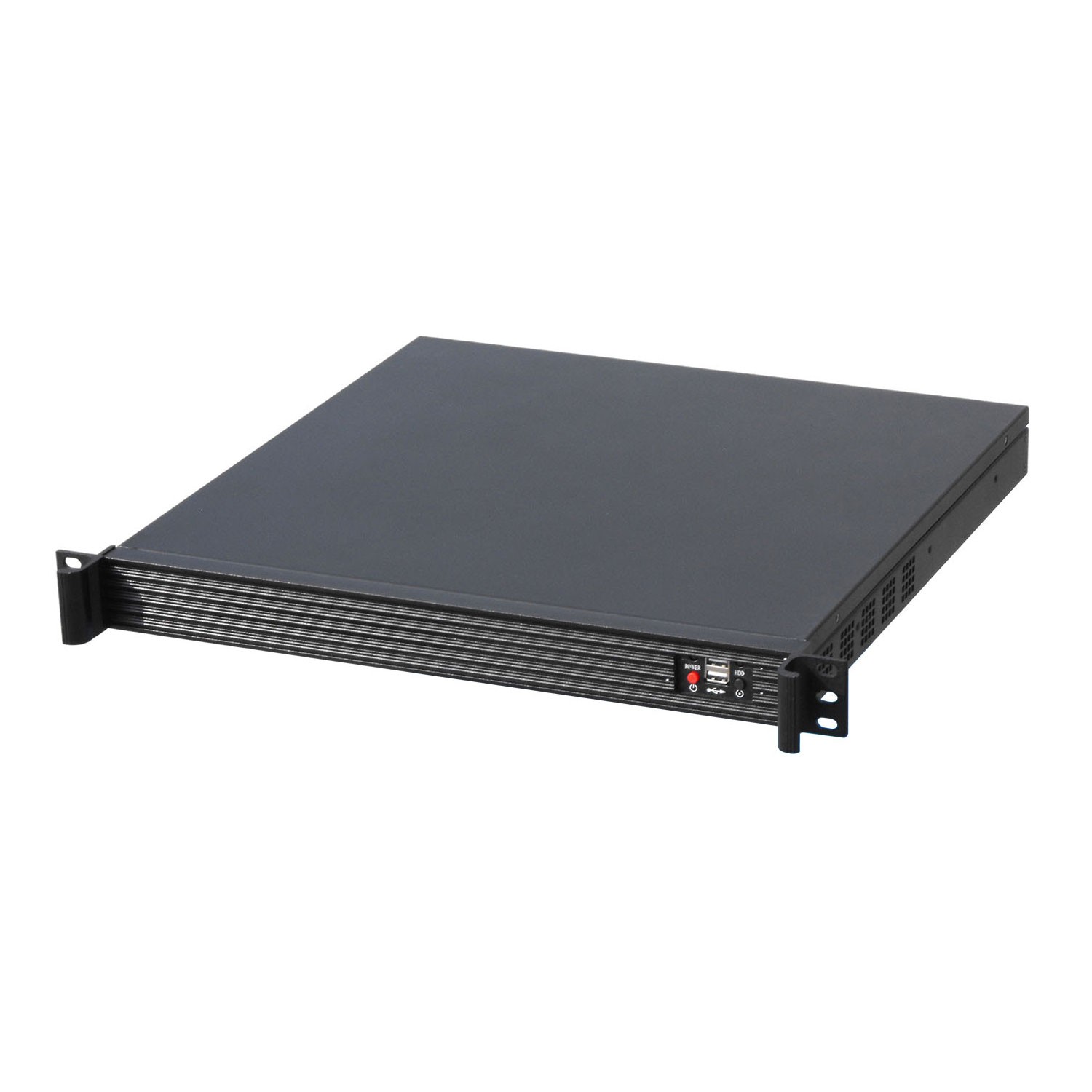

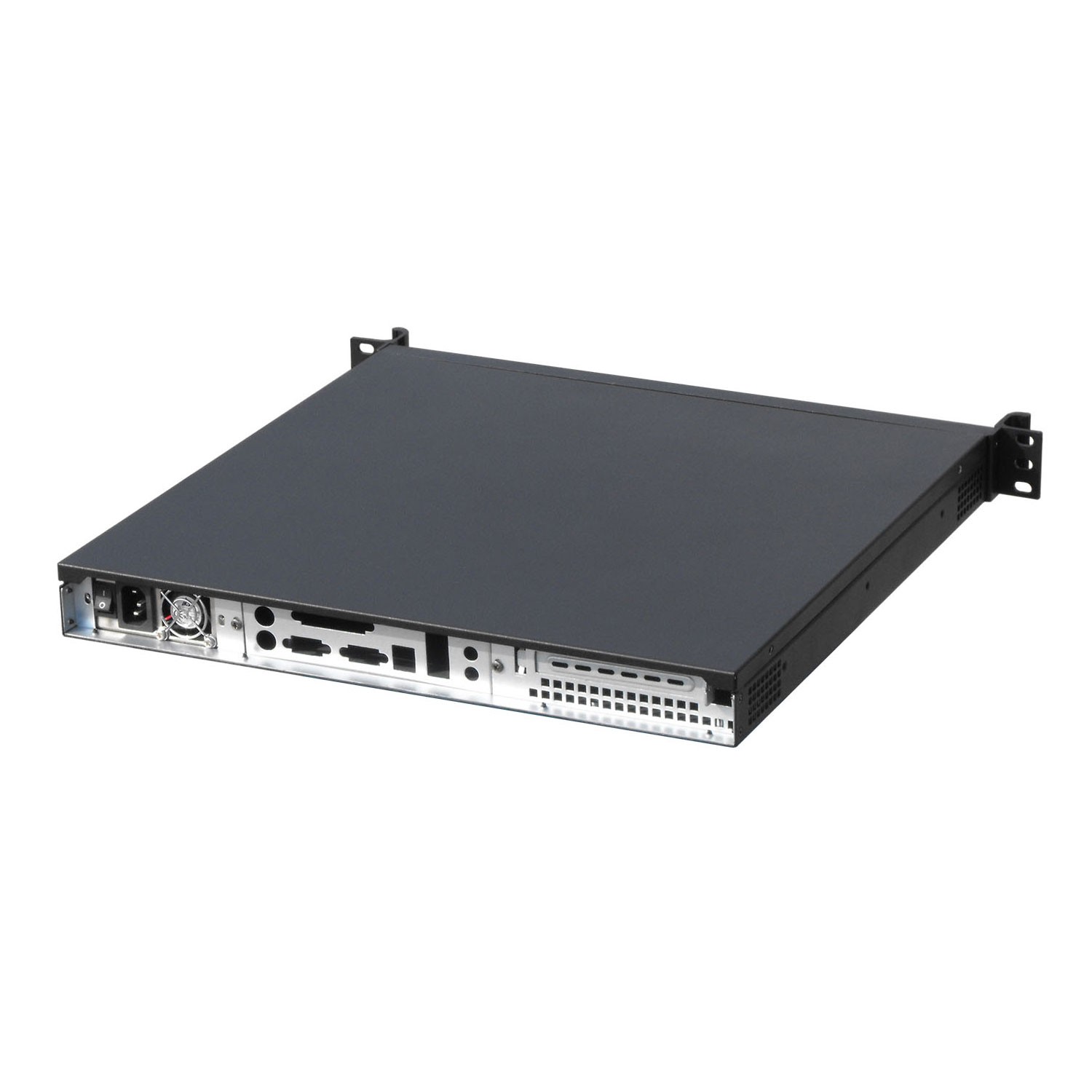

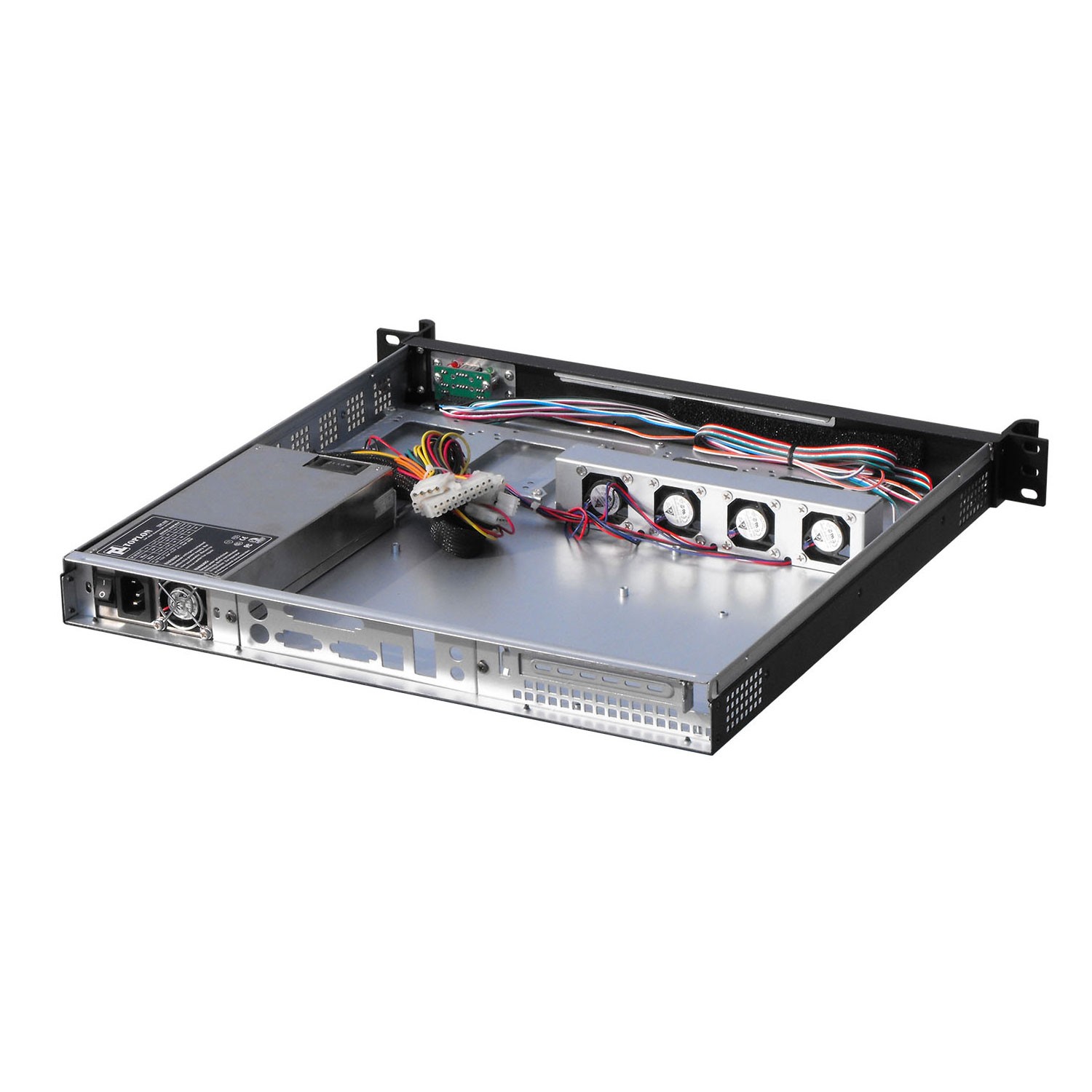

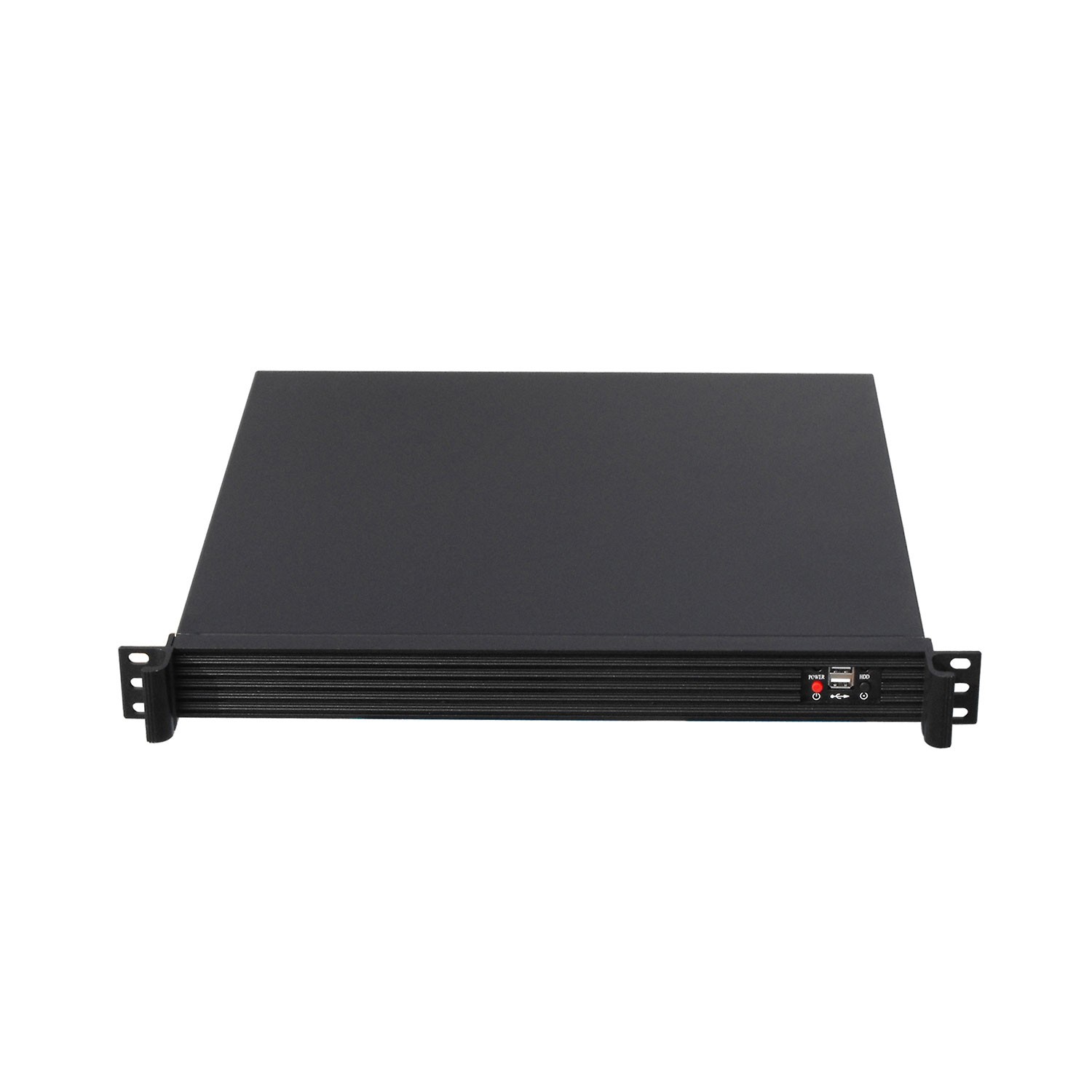

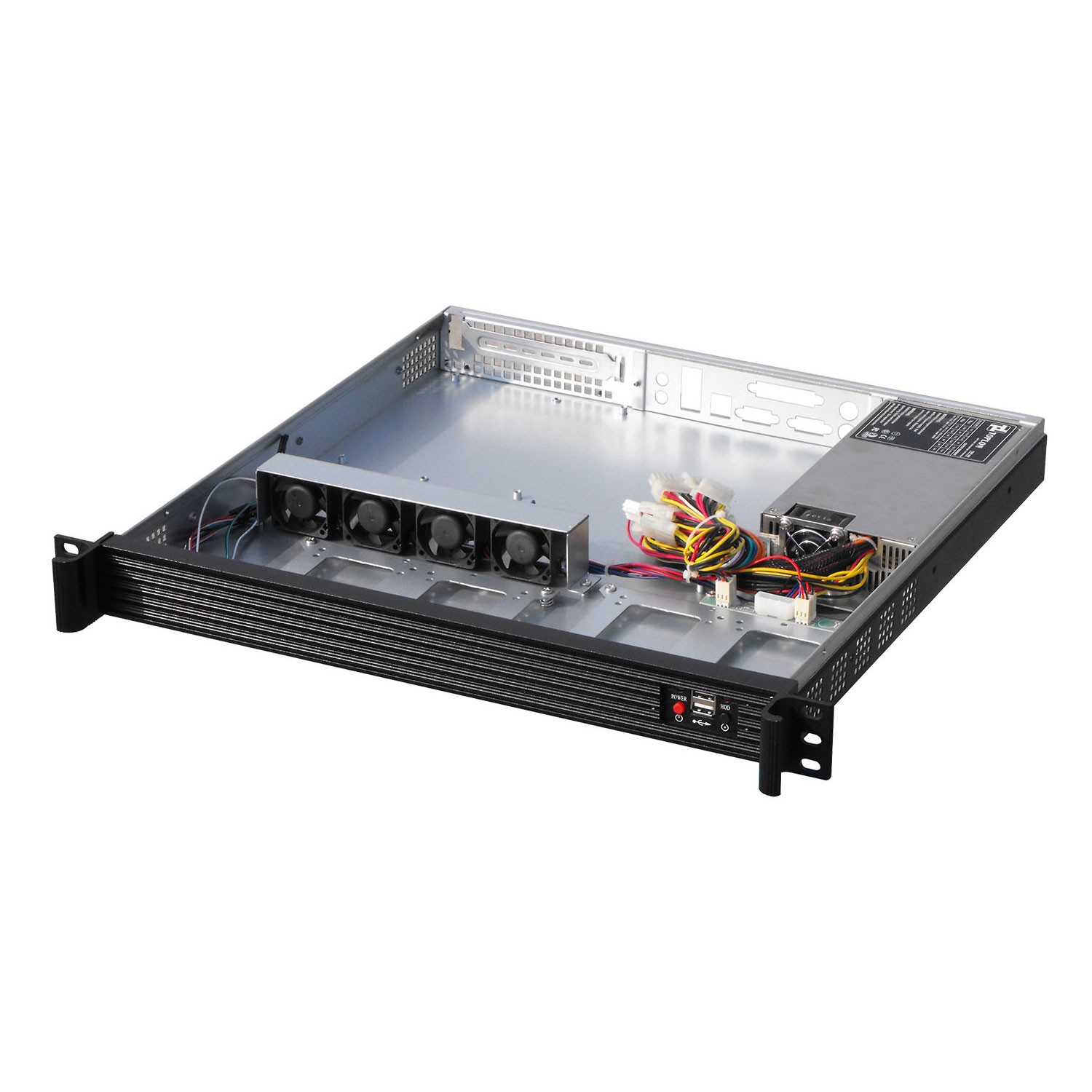

1U420L server chassis with a depth of 420mm and a height of 1U,
Supports 2 3.5-inch hard drives or 4 2.5-inch hard drives,
Supports standard ATX motherboards and standard 1U power supplies,
Equipped with 4 4020 fans as standard, it has good heat dissipation effect
| Components | Specification |
| Dimensions(mm) | 430mm x 420mm x 45mm. |
| Materials | Quality fine 1.0mm SGCC steel and Aluminium front panel. |
| Color | Black. |
| Drivers bay | 2 x 3.5" drive bays or 4 x 2.5" HDD/SSD drive bays. |
| Cooling Fan | 4 x 4020 ball bearing fans on the middle fan wall. |
| PSU form factor | Standard 1U power supply. |
| M/B form factor | Support MAX ATX 12" x 9.6" motherboard. |
| Epansion space | One horizontal expansion slot. |
| Connector | Two front accessible USB2.0 ports. |
| System Control | Power LED*1，HDD LED*1，Power SW*1，Reset*1，NIC LED*2. |
| Applicarion | Cloud computing, cloud rendering, security monitoring, LOTetc. |
| Product Features: | |
1.Conformed with EMC design standard to prevent from electromagnetic interference. | |
| 2.Support motherboard size up to ATX 12" x 9.6", and 2 x 3.5" drive bays or 4 x 2.5" HDD/SSD drive bays, Standard 1U power supply. | |
| 3.The chassis has good ventilation system 4 x 4020 ball bearing fans to make sure the system work steadily. | |
